PROVIDING COMPREHENSIVE MOBILE COVERAGE IN TUNNELS
Aren’t tunnels frustrating? Halfway through a conversation, midway through sending an urgent email, mid-song on the radio, and everything unceremoniously stops…Well, this is about changing all of that.
A neutral host Distributed Antenna System, like Pan RF CellHUB, can ensure seamless coverage throughout a tunnel.
NO MORE DROPPED CALLS
Relieve mobile users of the frustration of losing their mobile connection.
Give passengers the peace of mind of knowing they can make calls if they need to.
A passenger with access to their mobile is an entertained passenger – less likely to be stressed by brief delays.
Find out more about Pan RF CellHUB Neutral Host DAS please get in touch.
Achieving mobile phone coverage in a confined space, like a tunnel, is difficult. Ensuring a usable signal in a train in a rail tunnel is even more complex due to the narrow gauge, the restricted height, the length of the tunnel and the materials used in constructing the train carriages.
In the past we may have accepted that coverage would fall away when we entered a tunnel, but now we expect coverage to be seamless and uninterrupted, and why not? It isn’t an impossible feat.
What are the challenges of providing mobile coverage in tunnels like London Underground’s network? What are the available solutions and which is the most effective in overcoming the challenges?
In planning mobile coverage in a tunnel there are a number of considerations, including the length of the tunnel, size of the bore and anticipated demand on the system. Add in the challenge of ensuring a seamless transition on entering and leaving the tunnel, i.e. handing the signal from the cell site at the start of the tunnel to the site that’s being created in the tunnel and then on to the cell site on the far side of the tunnel, without dropping the signal.
In planning for mobile coverage on a subterranean rail network there are additional layers of complexity for the system designer – speed and frequency of trains etc. – and consideration of how passengers connect with the system during their journey, to ensure the best user experience. For example, a user waiting on a station platform is static and in an area of high dwell. Imagine them starting a data session at this point, perhaps downloading an important document or initiating a phone call. A train pulls into the station, they hop on and the mobile network has to manage the data session to ensure continuity of coverage, possibly involving a handover between cell sites whilst in a tunnel. All this should happen seamlessly without the user being aware of the signal management needed, but it can only happen if the physical infrastructure is in place to handle the radio traffic.
Tunnel Coverage Solutions
There are a number of possible solutions for achieving mobile coverage in a tunnel, depending on the application:
1) If a tunnel is relatively short, the Mobile Network Operator (MNO) may direct a signal at the tunnel mouth, aiming for it to reach down the tunnel and provide coverage through it. This is a crude solution which can be effective but it requires careful planning, and can produce variable results.
2) An off-air cell enhancer can be used to re-broadcast the signal from outside into the tunnel. This can be a very effective solution but success is dependent on network capacity. If the network is particularly busy, mobile users may have a poor experience as the signal from the congested cell site may be too weak to be effectively amplified down the tunnel.

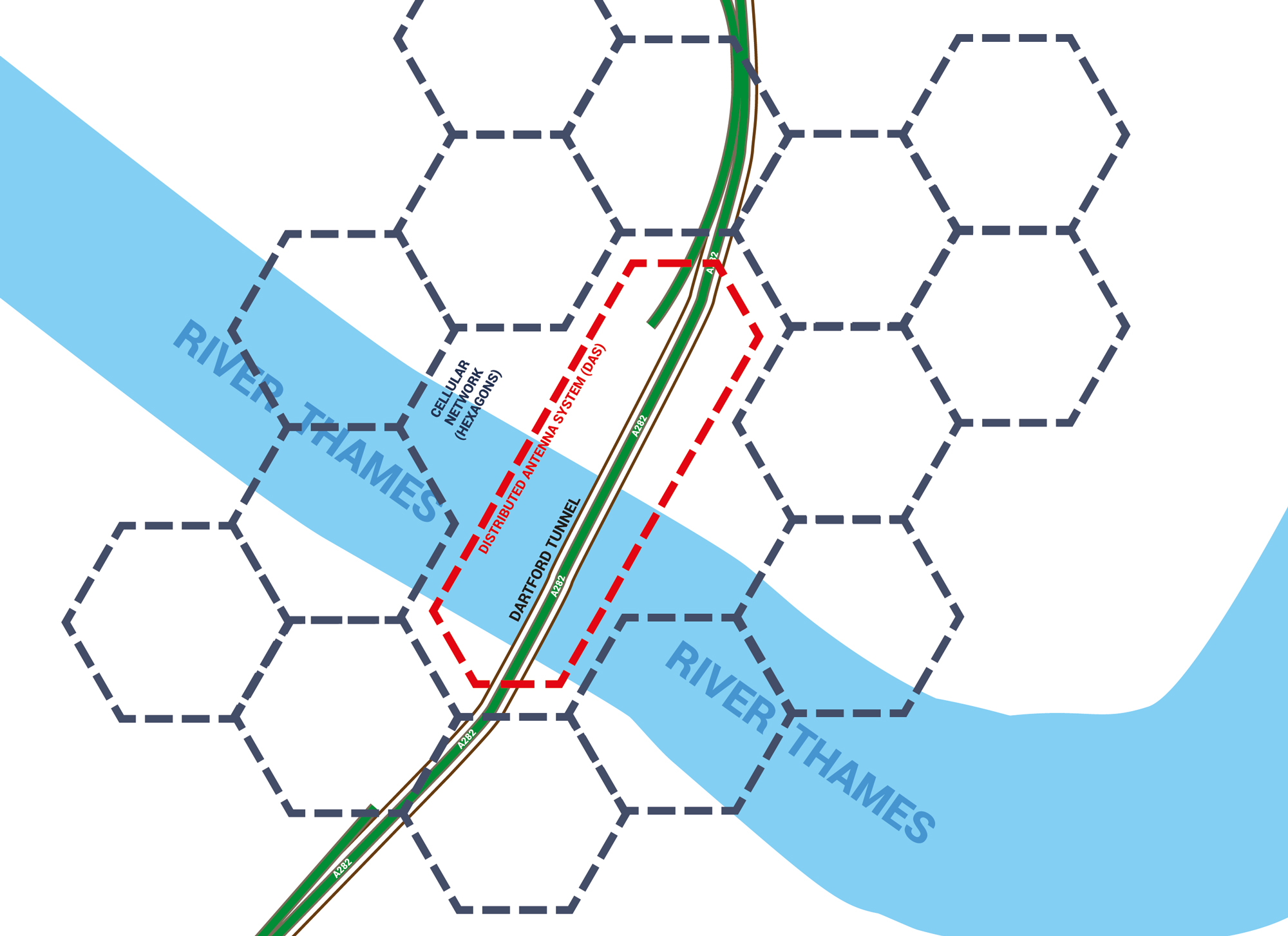

3) An internal cell site can be created within the tunnel to provide dedicated coverage, overlapping with the external signals at either end to manage the mobile traffic seamlessly. This was the principle of the system that was installed in the Dartford Tunnel for 3G, which was standard at the time. The Mobile Network Operators (MNOs) landed their base stations in a service tunnel between the east and west bores, then connected to a small Distributed Antenna System (DAS) inside the tunnels. Two directional antennas linked to the DAS and mounted back-to-back, in the middle of each tunnel bore, then provided coverage. With the advent of 4G and 5G, providing effective solutions has become more complex.
4) A ‘Neutral Host’ Distributed Antenna System (DAS) is the system London Underground has trialled on the Jubilee Line. ‘Neutral Host’ simply means that the system is not owned by any of the four Mobile Network Operators (MNOs) but is designed to carry some or all of them. The MNOs deliver a radio signal to the DAS, which converts the signal to light to transmit it via optical fibre cabling to a system of radio units, which then convert it back to a radio signal to provide the ‘last-leg’ of the mobile coverage over the air interface. In so doing, the end user gets the coverage required to make calls, receive and send messages and check their LinkedIn contacts.
The lower frequency bands should achieve better coverage results in the tunnels because of lower signal power losses at the lower mobile frequencies, the confined space environment and high blocking effect of the train carriages at higher frequencies. High-power radio units using lower frequencies would provide effective radio coverage through leaky feeder in the tunnels. Conversely, low-power radio units using higher frequency bands would offer higher data rates in areas of high dwell, like the platforms and the concourses. By using low power radio units inside the stations, installers can take advantage of structured cabling and a more flexible deployment of the radiating elements in a station. Therefore providing high data rates and good voice coverage to users in the underground stations.
Although there are a number of options for achieving cellular coverage in tunnels, to provide a future proof solution for an underground metro, with its network of subterranean stations and tunnels and high passenger footfall, a Neutral Host DAS is the current solution to meet the increasing demand for uninterrupted connectivity and faster upload and download speeds and provide for the advent of 5G. Will this be the launch pad for Open RAN? There are interesting times ahead, lets enjoy the ride.
